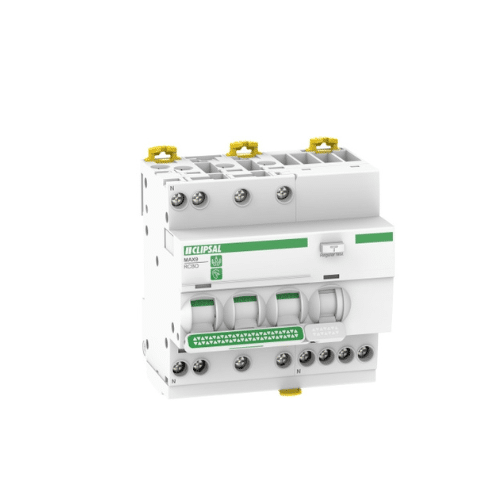

CLIPSAL MAX9 RCBO | MX9R3520

CLIPSAL MAX9 RCBO | MX9R3520

20A, 3PN C, 30MA, TYPE A

Schneider Electric

Regular price $160.00 AUD
Regular price Sale price $160.00 AUD
EcoXpert Package Sold out

This MAX9 product is a residual current breaker with overcurrent protection (RCBO). It is a 3P+N circuit breaker with 3 protected poles, 20A In rated current at 30°C and C tripping curve.

This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards.

It brings safety, reliable solution for commercial and industrial applications with high breaking capacity.

View full details

Product Information

Further Description Details

The operating frequency is 50Hz.The earth leakage protection class is type A with a sensitivity of 30mA. The earth-leakage protection time delay is instantaneous.

The Icn rated short circuit breaking capacity is up to 6000A at 415VAC. It has an electrical endurance going up to 10000 cycles and mechanical endurance going up to 20000 cycles. It has a RCM quality label.

The Ue rated operational voltage is 415VAC. The Ui rated insulation voltage is 440VAC. It has a Uimp rated impulse withstand voltage of 4kV. It can be mounted on DIN rail for modular installation. The width in 9mm pitches is 10.
