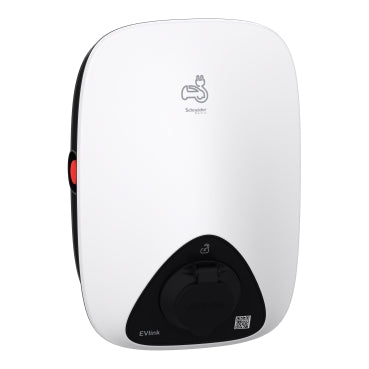

EVlink Home 11kW AC Charger | EVH4S11N2

EVlink Home 11kW AC Charger | EVH4S11N2

EVlink Home, Charging station, 3P+N, 1xT2, 11kW, 16A, with RDC-DD

Schneider Electric

Regular price $1,230.00 AUD
Regular price Sale price $1,230.00 AUD
EcoXpert Package Sold out

This Evlink Home product is a wall-mounted charging station is recommended for private use at home, installed in the garage for instance.

The output type is a T2 socket-outlet, fixed on the front face of the station. The nominal output power is 11kW.

It is supplied in three-phase (3P+N). The rated charging current is 16A under 230VAC with a 50Hz to 60Hz frequency. It is fitted with a built-in protection against residual direct current (RDC-DD as Residual Direct Current Detecting Device) and can be used with a TN-S or TT earthing system.



View full details

Product Information

Further Description Details

By complementing the charging station with the anti-tripping system, it benefits of the dynamic energy management. This one allows to adjust in real time the maximum power allocated to the charging electric vehicle, according to the consumption of the rest of loads in the house.

The IP degree of protection is IP55. The IK degree of protection is IK10. The operating temperature is between -30°C and 50°C.

The charging station is easy to install (no special tools required) and for all electrical vehicles compliant with IEC61851-1 standard.

The dimensions are (W) 282mm x (H) 409mm x (D) 148mm. Its product weight is 5.6kg. Its color is white (RAL9003). There is no access control to use the charging station for loading an electrical vehicle.

A red push-button is present in case of emergency stop. One LED is changing color between red, green and blue in order to indicate the loading status directly on the charging station.
