EVLink Pro 22kW AC Charger - MID Meter + 5m cable | EVB3S22NC0M
EVLink Pro 22kW AC Charger - MID Meter + 5m cable | EVB3S22NC0M
AC Metal, 22kW, 32A, 3P+N, T2 attached cable, RDC-DD 6mA, MID meter
Schneider Electric
Couldn't load pickup availability

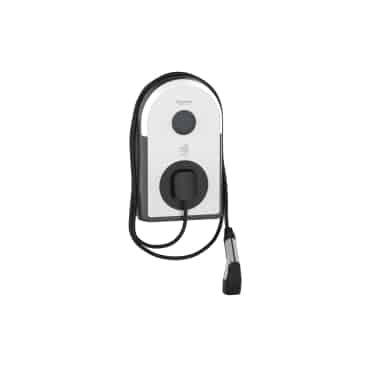

This EVlink Pro AC product is a wall-mounted charging station recommended for destination, commercial, fleet, at street or at work charging.
The nominal output power is 22kW. It is supplied in three-phase (3P+N). The rated charging current is 32A under 380V to 415VAC with a 50Hz to 60Hz frequency.
Access to the charger can be controlled through user authentication with an RFID or NFC badge, however the charging station can also be used for free access.
The load starting can be time-delayed. During the load time, the power can be limited to ensure the continuity of service and optimize the charging time of all the charging station based on a same feeding.
The output type is a 5m attached cable with a T2 socket-outlet with shutter (T2S) at the end, installed at the top centre of the station. All the contacts of T2 connector are silver-plated avoiding overheating.
It can be installed indoor as well as outdoor.
Share
Product Information
Further Description Details
This unit can also be floor-standing, either fixed on a pedestal, or integrated in a kit enclosure. Both pedestal or kit enclosure have to be ordered separately. The charging station can be fed by cable coming from the rear, the top or the bottom of it.
The output type is a T2 socket-outlet with shutter (T2S), fixed on the front face of the station. All the contacts of T2S socket-outlet are silver-plated avoiding overheating. The nominal output power is 22kW. It is supplied in three-phase (3P+N).
The rated charging current is 32A under 380V to 415VAC with a 50Hz to 60Hz frequency. It can be used with a TT, TN-S, or TN-C-S earthing system.
It embeds a built-in protection against residual direct current, with a 6mA residual direct current detection device (RDC-DD). Moreover, it is necessary to meet EV Ready requirements.
It is also IT compatible with an additional isolation transformer on the power supply. The charging station is easy to install and to commission.
The IP degree of protection is IP55. The IK degree of protection is IK10. The operating temperature is between -30°C and 50°C. The storage temperature is between -40°C and 80°C.
It has 2 Ethernet RJ45 ports for LAN connection. The parameters are set up through eSetup app via Bluetooth or EcoStruxure EV Charging Expert. The charging station can be managed in standalone or in clustered architecture. The OCCP 1.6 communication protocol is used to connect to the supervision device.The available services are the charge detail records, the diagnosis capabilities and the load management. The charging station has the CE and EV Ready certification for all electrical vehicles compliant with IEC61851-1 standard.
The dimensions are (W) 317mm x (H) 529mm x (D) 153mm. Its product weight is 7.2kg. Its color is white (RAL9003).
