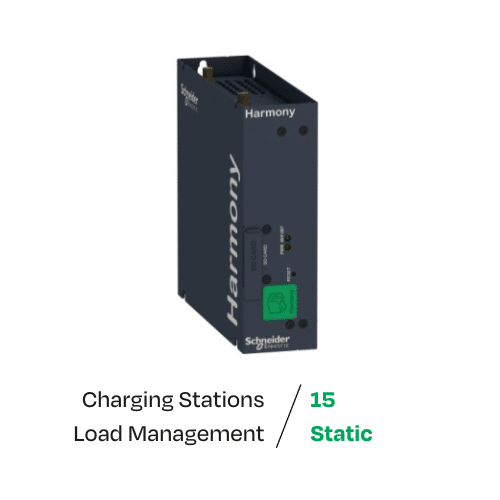

15 Station Static Charge Management | HMIBSCEA53D1ESS
15 Station Static Charge Management | HMIBSCEA53D1ESS
Manage the overall energy allocated to each vehicle
Schneider Electric
Couldn't load pickup availability
EcoStruxure EV Charging Expert allows EV charging for up to 5 Stations to be monitored, controlled and maximised based on defined threshold (power limit) so only the remaining available power for EV charging is distributed among the connected EVs.

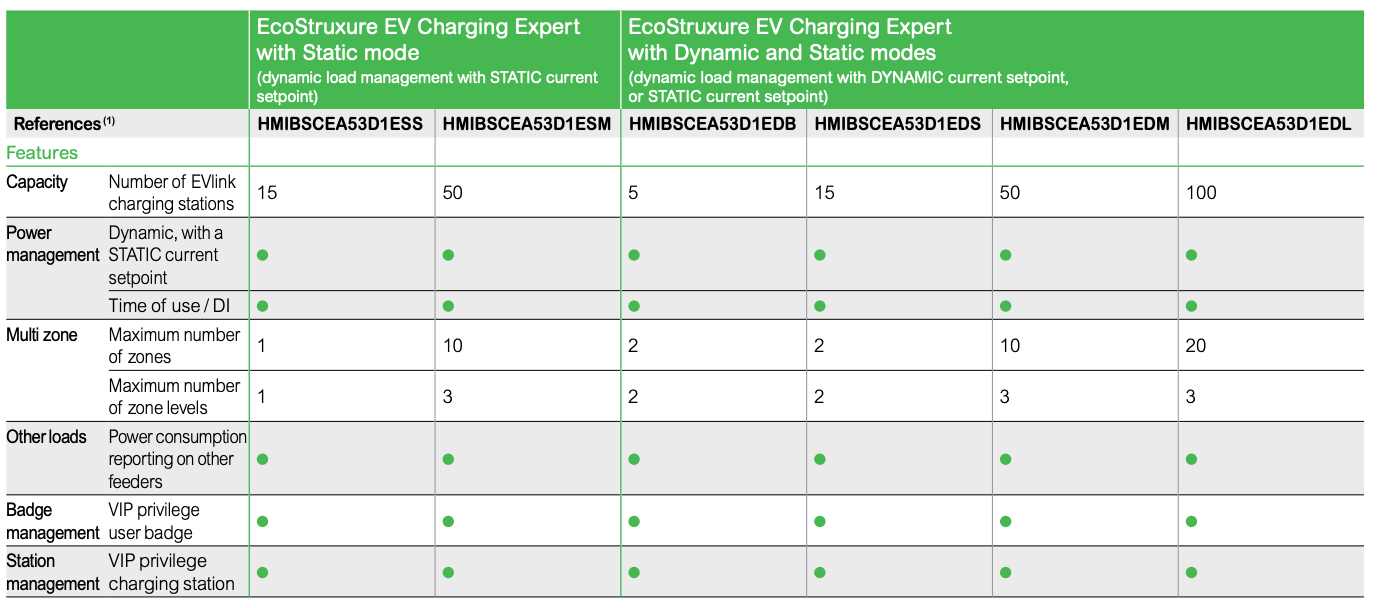

Features:
-
Fixed current setpoints can be determined according to the capacity of the divisional panel board
- EVs can be charged at pre-defined times to optimize off peak electricity tariffs.
- Monitoring and control of EV charging stations based on an open protocol (OCPP 1.6-J)
EVLink Load Management System redistributes the loads, eliminating the need to upgrade a transformer or electrical devices in the building.
Share
Product Information
Further Description Details
The addition of EV charging infrastructure represents an increase in the electricity demand of a building.
It helps to ensure the respect of cost and energy efficiency constraints of a set of charging stations by controlling their operation.
Load management can be static or dynamic, meaning that a defined threshold (power limit) is set and only the
remaining available power for EV charging is distributed among the connected EVs. Also, EVs can be charged
at pre-defined times to optimize off peak electricity tariffs.
The controller runs its management program according to the selected parameters and data received from the charging stations.
