Complete EVlink Home 11kW Charger Package | EVH4S11NC + EVA1HPC3 + MX9R3520

Complete EVlink Home 11kW Charger Package | EVH4S11NC + EVA1HPC3 + MX9R3520

11kW, 3P, T2, 16A ,RDC-DD Filter, 5m Cable + anti trip, MAX9 RCBO

EVIAM Trade Store

Regular price $1,606.50 AUD
Regular price Sale price $1,606.50 AUD
EcoXpert Package Sold out

This smart 11kW - Complete EV Home Charger Package is set up for complete residential energy management on 3 Phase Power.

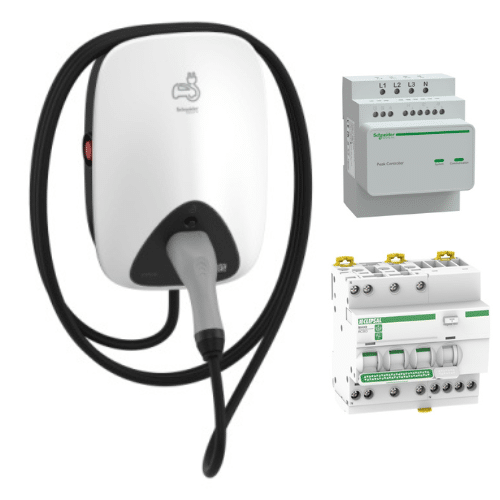

Pack includes:

1 x EVLink Home 3P T2 11 kW 16A - with RDC-DD Filter
      - with 5m Cable Attached | EVH4S11NC
1 x EVLink Home anti tripping system 3P | EVA1HPC3
1 x CLIPSAL MAX9 RCBO -  20A, 3PN C, 30MA, TYPE A | MX9R3520

Home anti tripping system is a power load management system to adapt continuously the power delivered by the charger to the EV according to power available at home.

The power availability is calculated by the Home Anti-tripping system by comparing the utility power limit and the home consumption gathered by a current transformer positioned on the bottom of the main circuit breaker.

View full details

Product Information

Further Description Details

This EVlink Home product is a wall-mounted charging station for all electrical vehicles compliant with IEC61851-1 standard. The IP degree of protection is IP55. The IK degree of protection is IK10. The operating temperature is between -30°C and 50°C.

The output type is a 5m attached cable with a T2 socket-outlet at the end, installed at the bottom and top centre of the station. The nominal output power is 11kW. It is supplied in three-phase (3P+N). The rated charging current is 16A under 230VAC with a 50Hz to 60Hz frequency. It can be used with a TN-S or TT earthing system.

The charging station is easy to install (no special tools required). It is recommended for private use at home, installed in the garage for instance.

The dimensions are (W) 282mm x (H) 409mm x (D) 148mm. Its product weight is 5.6kg. Its color is white (RAL9003). It is fitted with a built-in protection against residual direct current (RDC-DD as Residual Direct Current Detecting Device).

There is no access control to use the charging station for loading an electrical vehicle. A red push-button is present in case of emergency stop. One LED is changing color between red, green and blue in order to indicate the loading status directly on the charging station.

By complementing the charging station with the anti-tripping system, it benefits of the dynamic energy management. This one allows to adjust in real time the maximum power allocated to the charging electric vehicle, according to the consumption of the rest of loads in the house.
